Buchanan Spartan

Brief details

Builder

Various

The Alan Buchanan 'Spartan' design is a very pretty small cruiser built by a number of boatyards in the 1950's. Almost all Spartans are carvel planked, but several clinker-built boats were also built by one yard.

LOA

24' 6"

Sail area

not known

LWL

19' 8"

Rig

sloop

Beam

6' 6"

Cabins

1

Draught

4' 0"

Berths

2

Displacement

3 tons

Engine

Stuart Turner

Ballast

1.7 tons

BHP

4

Keel type

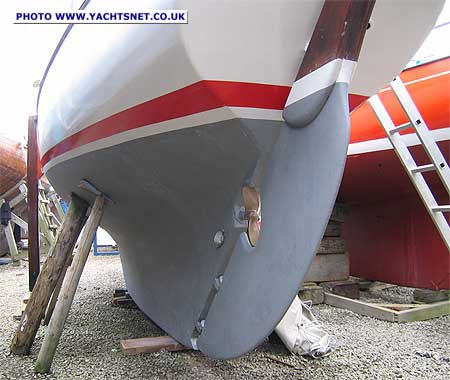

Long fin, external iron ballast keel

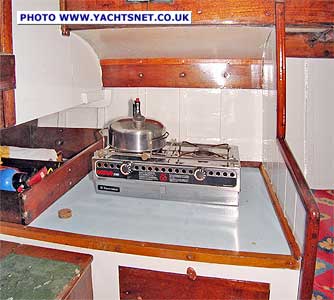

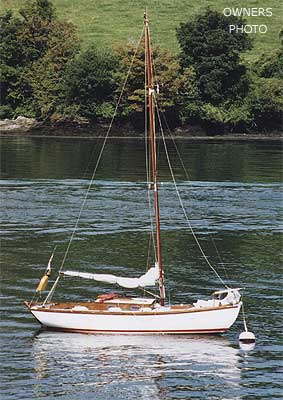

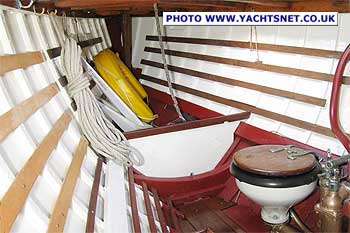

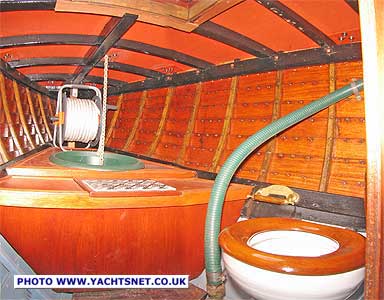

The Spartan is a small traditional cruising yacht with exceptionally pretty lines. With two berths, plus a small cooker and a Baby Blake toilet in the forepeak, she has a cosy and traditional cabin.

Yachts seen here are no longer for sale - the data is online as a free information service for buyers researching boat types. THE PHOTOGRAPHS ARE COVERED BY COPYRIGHT, AND MAY NOT BE REPRODUCED WITHOUT THE PERMISSION OF YACHTSNET LTD.

Go to our brokerage section for boats currently for sale

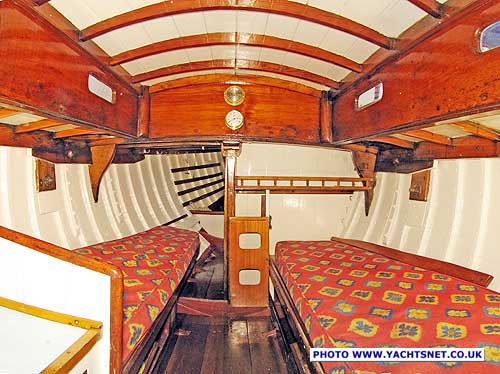

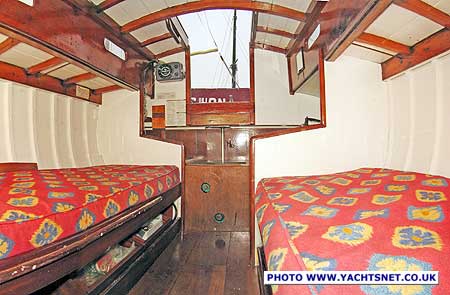

Interior of a very original carvel-built Spartan, still with canvas-covered planked decks

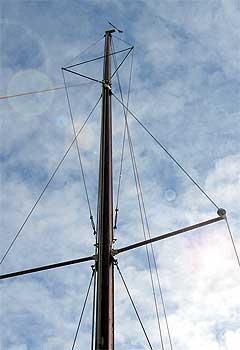

Although we have a copy of the lines plans from her date of building, these do not show the sail area or exact displacement and ballast figures. However she is reported to sail very well, and clearly has quite a high sail area for her size.

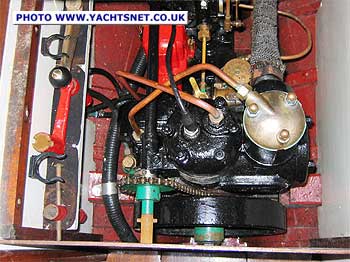

The original engine is still in the carvel-built yacht shown: this is a Stuart Turner single-cylinder petrol engine

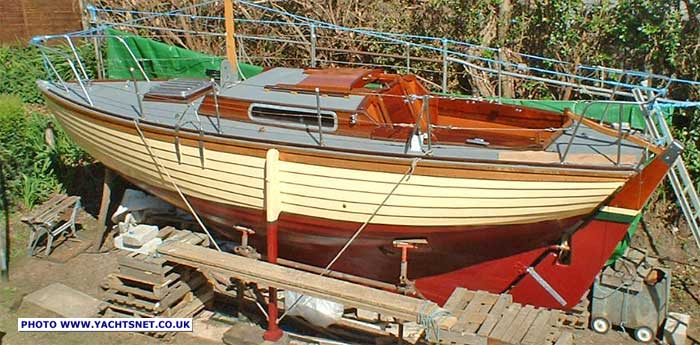

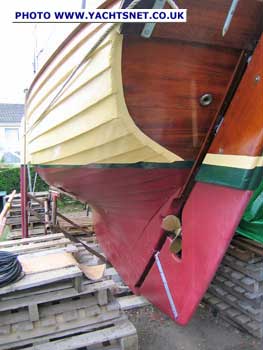

Below are some photos of one of the few clinker-built Spartans - this example has been redecked, and a new coachroof fitted, in marine ply.

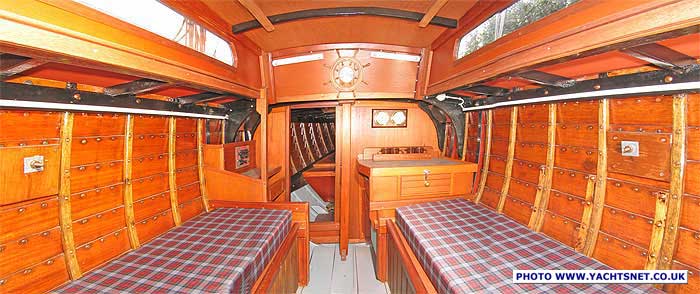

Below: another of the clinker-built Spartans, this one a Mk II
built by Priors in 1956. Photo from the owner in Italy
