Yachtsnet's archive of boat details and pictures


The following information and photographs are displayed as a service to anyone researching yacht types. HOWEVER THE PHOTOGRAPHS AND TEXT ARE COVERED BY COPYRIGHT, AND MAY NOT BE REPRODUCED WITHOUT THE PERMISSION OF YACHTSNET LTD. Details and photographs are normally based on one specific yacht, but could be a compilation. No reliance should be placed on other yachts of the same class being identical.  Where common variations exist, we have endeavoured to indicate this in these archive details.

Elizabethan 31 ketch

Brief details

Builder

Peter Webster Ltd., Lymington

The Elizabethan 31 is a classic long-keeled cruising yacht. Most were aft-cockpit sloops, but a few centre-cockpit ketch-rigged versions were built. These had much greater headroom than the aft-cockpit sloop versions.

LOA

31' 0"

Sail area

430 sq ft

LWL

24' 2"

Rig

ketch

Beam

9' 4"

Cabins

Forecabin, saloon and aft cabin

Draught

4' 8"

Berths

6

Displacement

11,200 lbs

Engine

various

Ballast

5,600 lbs

BHP

35

Keel type

Long fin keel

Elizabethan 31 ketch

The Elizabethan 31 was introduced in 1968, as a long-keeled family cruiser. She was the first commercial design by David Thomas, who later went on to design the Sigma and several Hunters. Around 40 sloop rigged Elizabethan 31s were built by Peter Webster Ltd., though after the company's closure in 1976 the moulds were used to produce additional hulls, mostly home completed.

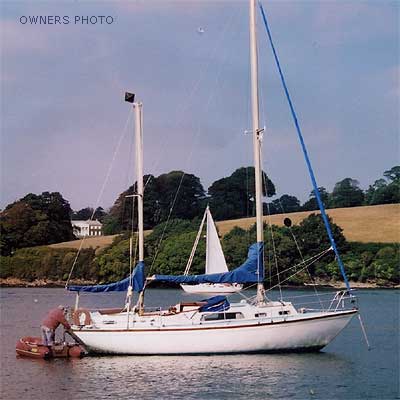

In 1970 a ketch-rigged version was built, with centre cockpit and a higher deck moulding, giving much greater headroom in the saloon, as well as a separate two-berth aft cabin. The long-keel hull is exactly the same as the sloops, with 50% ballast ratio. Elizabethan 31s are well regarded as long-distance cruisers with several having made notable ocean passages. The yacht illustrated here is one of these rare ketch-rigged versions (only four ketches were built)

Yachts seen here are no longer for sale - the data is online as a free information service for buyers researching boat types. THE PHOTOGRAPHS ARE COVERED BY COPYRIGHT, AND MAY NOT BE REPRODUCED WITHOUT THE PERMISSION OF YACHTSNET LTD.

Go to our brokerage section for boats currently for sale

Elizabethan 31 ketch

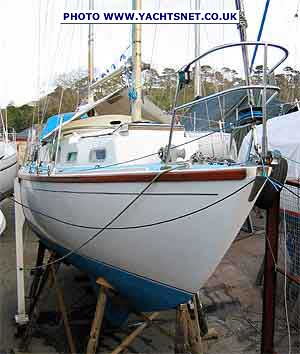

The Elizabethan 31 has a classic long keel hull, with moderate draught. This example has legs to allow her to dry out upright.

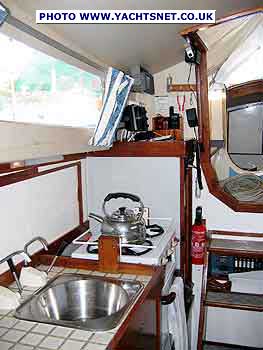

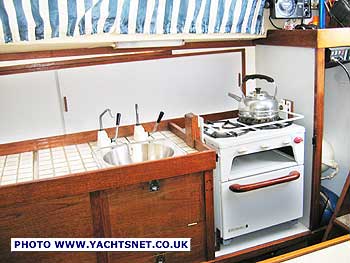

The saloon has a dinette (convertible to double berth) to port, and the galley to starboard. Headroom in the saloon is about 6' 6"

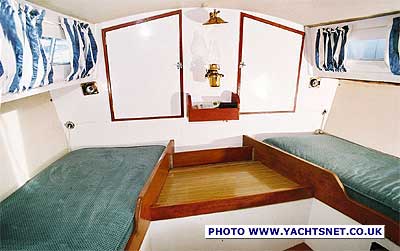

The aft cabin has two single berths, with a shelf dividing them


Left - the heads compartment, with hanging locker opposite, has a stainless basin and a marine WC.

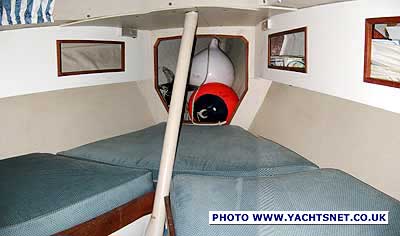

The forecabin (below) also has two single berths. The tube in the centre is the chainpipe leading from the deck to the chain locker.





Elizabethan 31 ketch

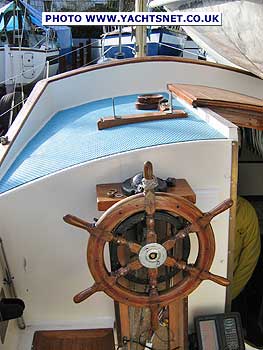

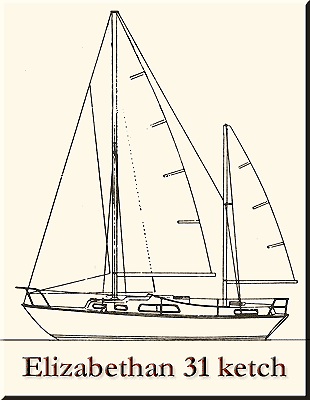

On deck she has a ketch rig with triatic stay. The cockpit is deep, and has wheel steering. The diesel inboard is installed under the cockpit sole, with good access via removable panels.

Elizabethan 31 ketch



Elizabethan 31 ketch
