Yachtsnet's archive of boat details and pictures

The following information and photographs are displayed as a service to anyone researching yacht types. HOWEVER THE PHOTOGRAPHS AND TEXT ARE COVERED BY COPYRIGHT, AND MAY NOT BE REPRODUCED WITHOUT THE PERMISSION OF YACHTSNET LTD. Details and photographs are normally based on one specific yacht, but could be a compilation. No reliance should be placed on other yachts of the same class being identical.  Where common variations exist, we have endeavoured to indicate this in these archive details.

Hunter Legend 340

Brief Notes


Hunter Marine Corporation, Florida

Legend 340s are American-built Hunters, and offer remarkable interior space and comfort for the price. They are very much designed for comfort in a marina, particularly in warm climates, but also provide good sailing performance in the sort of light to moderate conditions most leisure sailors actually go out in

Length OA

33' 6"

Sail Area

682 sq ft main and genoa

Length WL

28' 7"


Fractional sloop


11' 8"

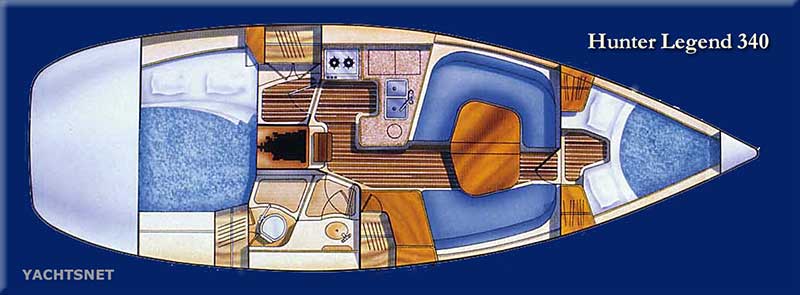

Forecabin, saloon and aft cabin


4' 6" shallow fin or 6' 6" deep fin




11,030 lbs

Engine type

Yanmar diesel


4,100 lbs

Engine bhp


Keel type

Fin keel and spade rudder

The Hunter Legend 340 is a development of the Hunter 335 and 336 boats from the early to mid 90s. Introduced in 1997, and sharing the same hull as the earlier versions, this yacht has the by now almost trademark Hunter cockpit arch supporting the mainsail sheet track, keeping the track well out of harms way for children in the large, family-friendly cockpit. The backstayless Bergström fractional rig with solid mast struts instead of one set of lower shrouds looks unusual, but has been well proven, and having the large roached mainsail as the main source of driving power makes handling easy, with lighter genoa sheet loads when tacking. Yachting Monthly described these boats as "...easy to sail, and reasonably quick".

Hunter Legend 340 for sale

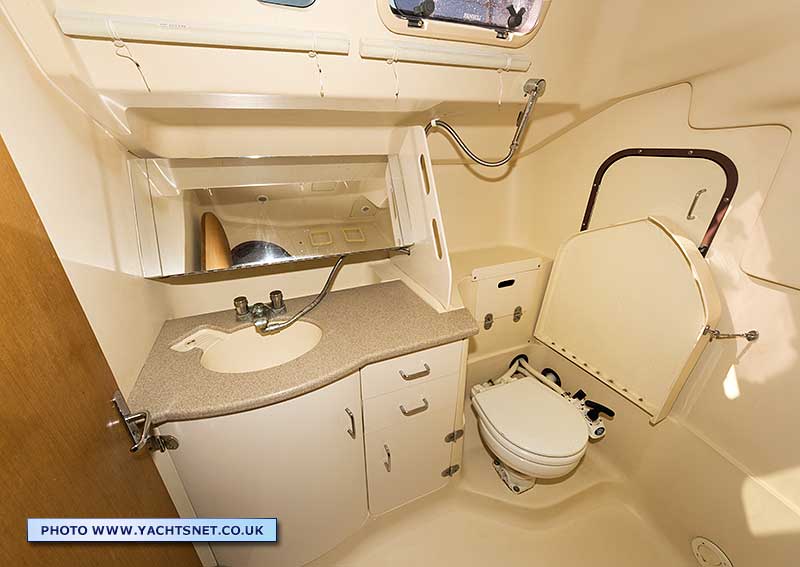

These boats offer an amazingly spacious and well fitted interior, with a first class galley, including built in microwave (actually very useful), spacious heads compartment, and an aft cabin with an enormous double berth, expected to be used athwartships. The standard inventory from the factory is very comprehensive

Yachts seen here are no longer for sale - the data is online as a free information service for buyers researching boat types. THE PHOTOGRAPHS ARE COVERED BY COPYRIGHT, AND MAY NOT BE REPRODUCED WITHOUT THE PERMISSION OF YACHTSNET LTD.

Go to our brokerage section for boats currently for sale

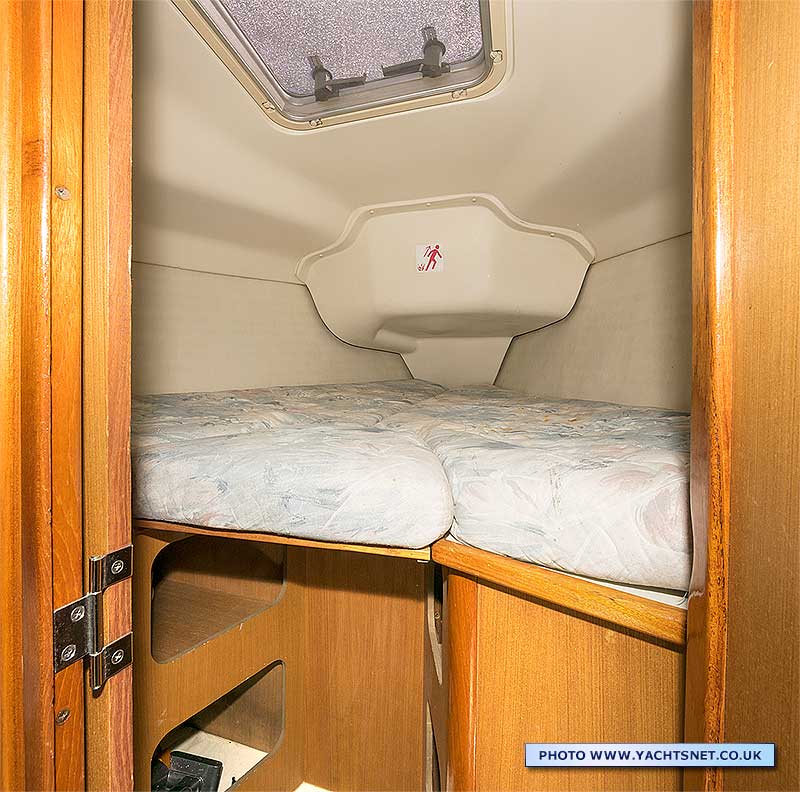

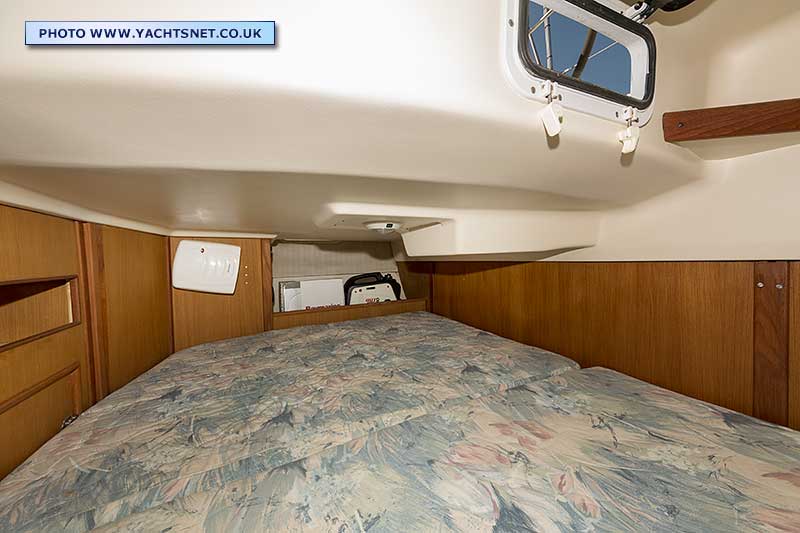

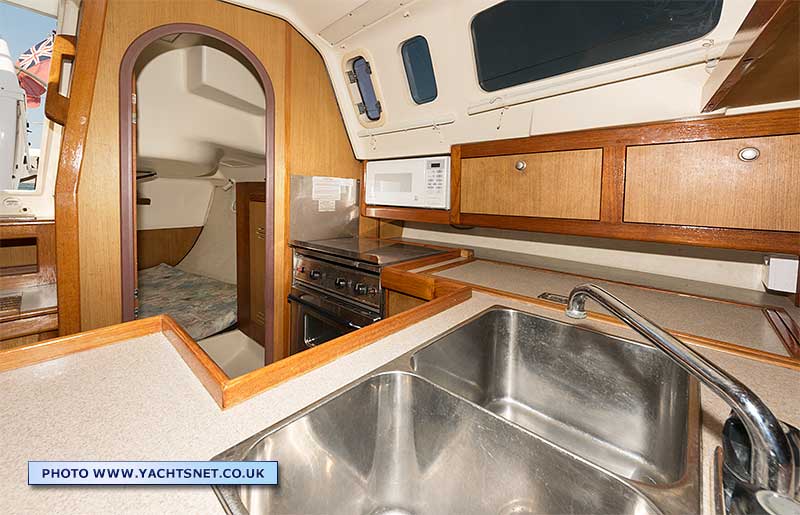

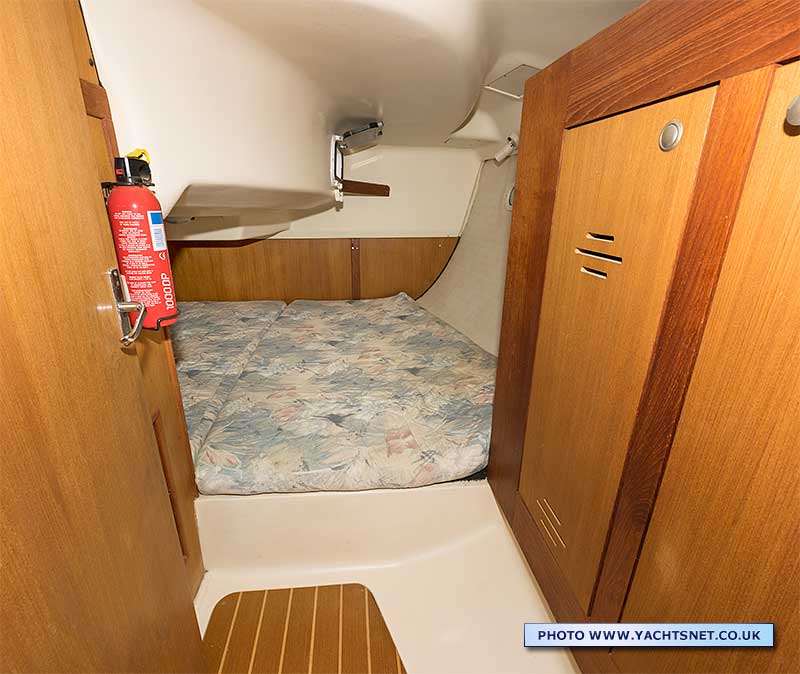

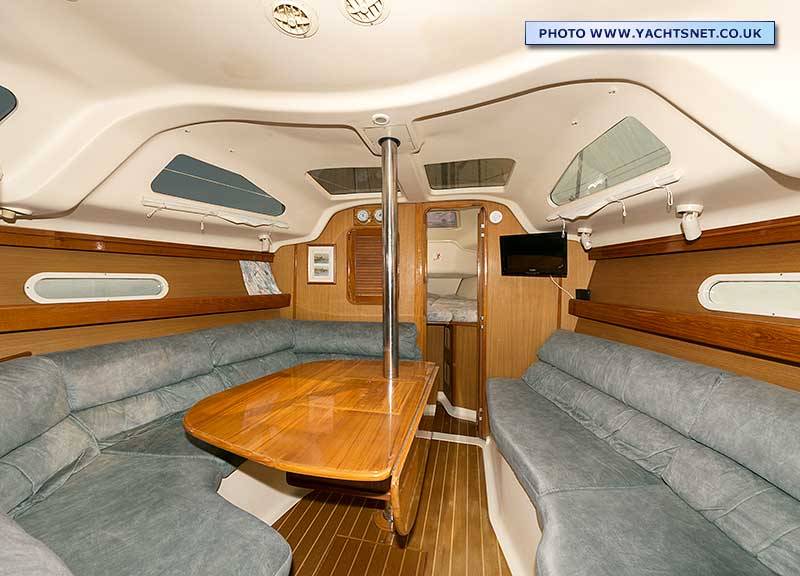

Above - aft cabin with double berth designed for use athwartships. While very comfortable in harbour, the 340 does not really have a single berth properly usable at sea . The saloon table has two folding leaves, allowing it to be used as a dinette-style 4-seater, or to seat the full six by using the starboard settee. The dinette converts to a double berth, and forward of this is the separate two berth forecabin (not shown)

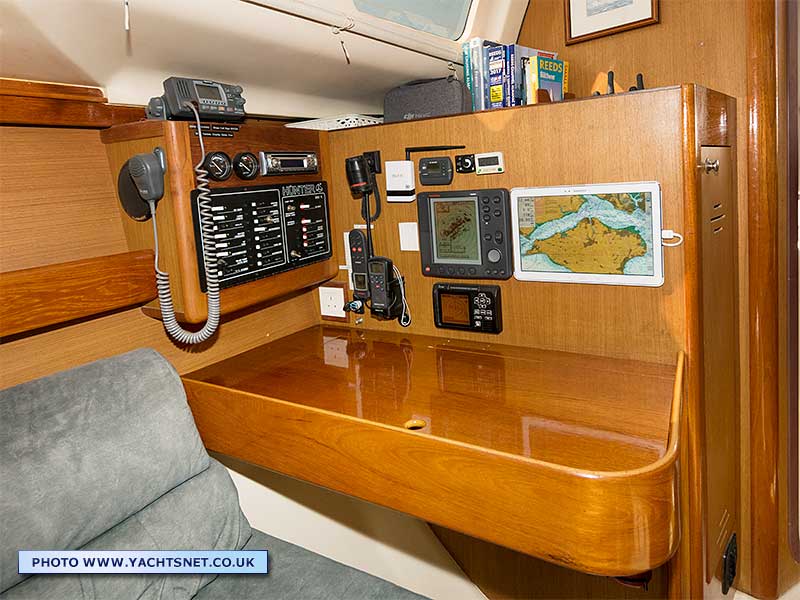

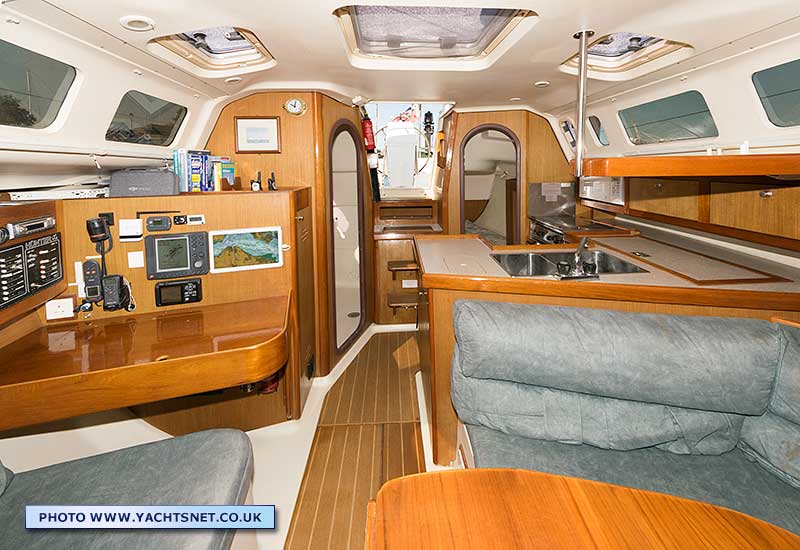

The chart table is at the aft end of the saloon starboard setee, and is sized for 'folio' charts or electronic navigation

Hunter Legend 340

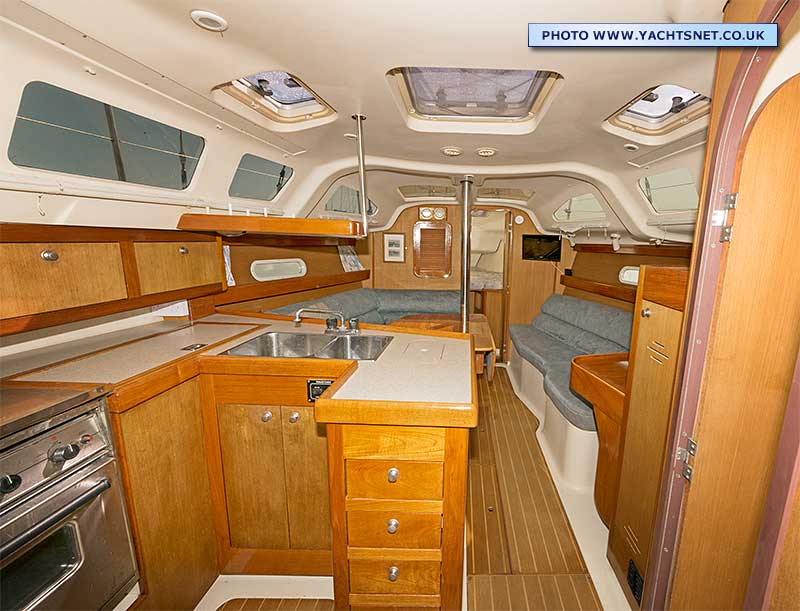

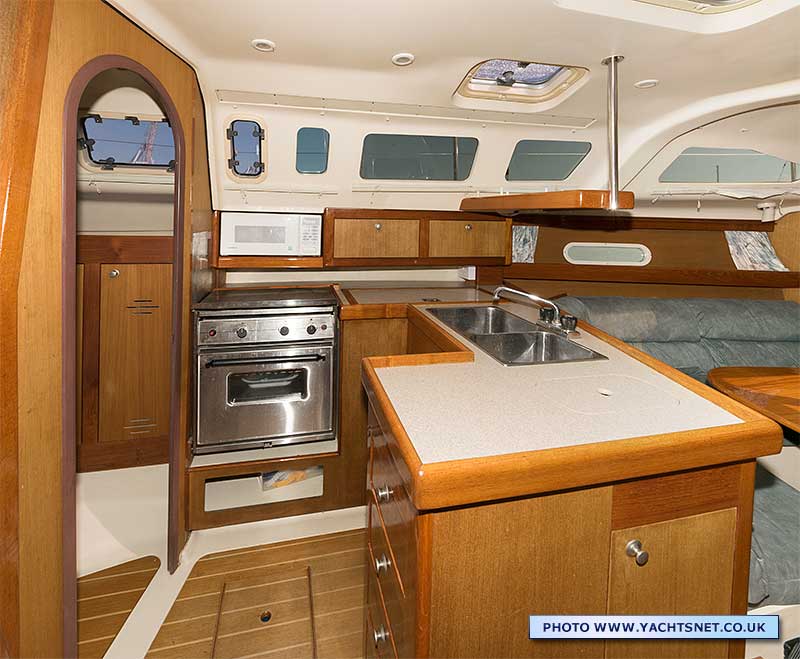

While the chart table is small, the galley is excellent

Photo above from Luhrs Marine sales brochure

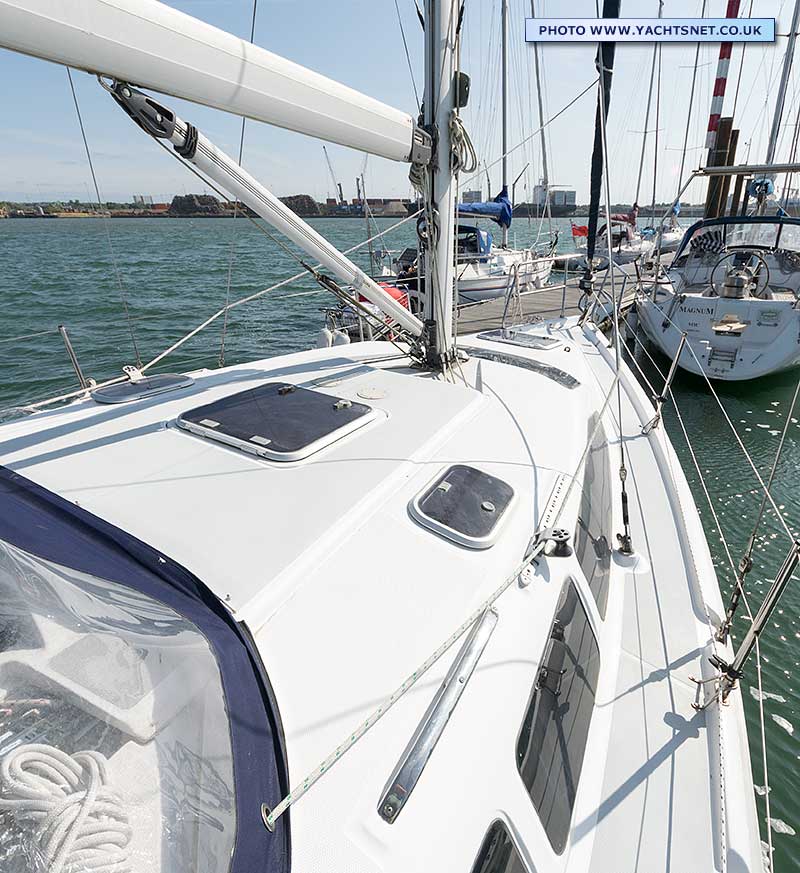

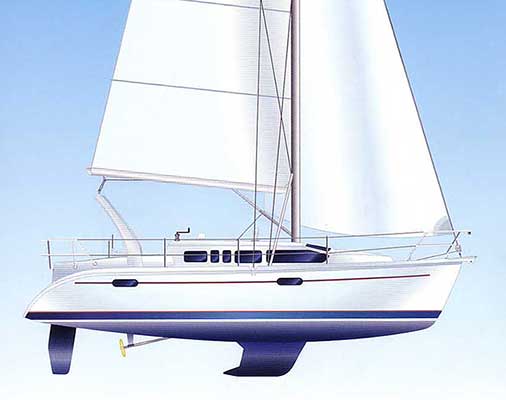

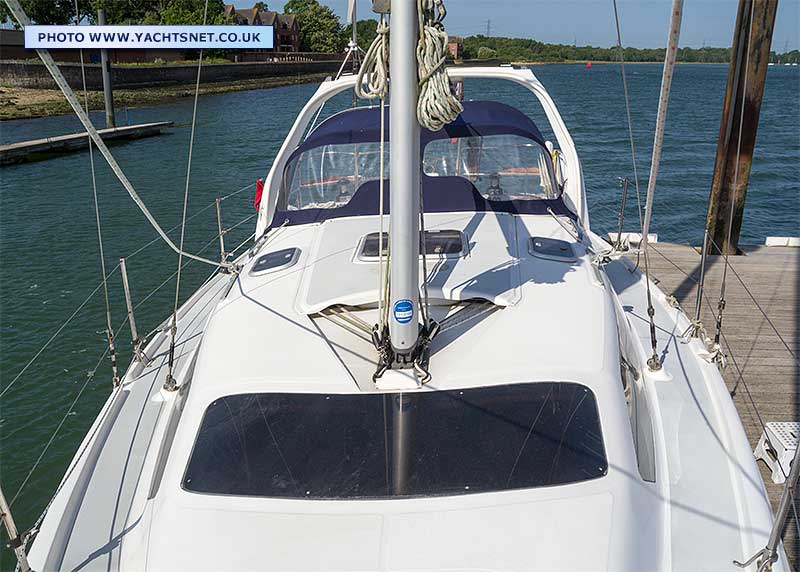

The backstayless Bergstrom rig is easy to handle: with a relatively small headsail sheet loads are lessened, and the big main is effective in light airs. The only downside to the rig (apart from nervousness at not having a backstay) is that the sharply aft-raked spreaders restrict the ability of the sail to be set running.

Although those accustomed to more conventional rigs with backstays tend to be dubious about the Bergstrom rig, as supplied by Hunter it is in fact safe and reliable, with many thousands in use worldwide.

Hunter Legend 340

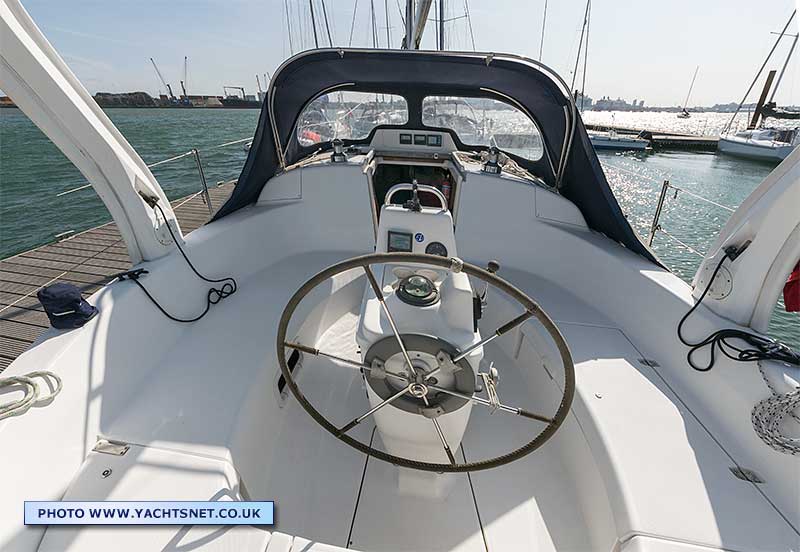

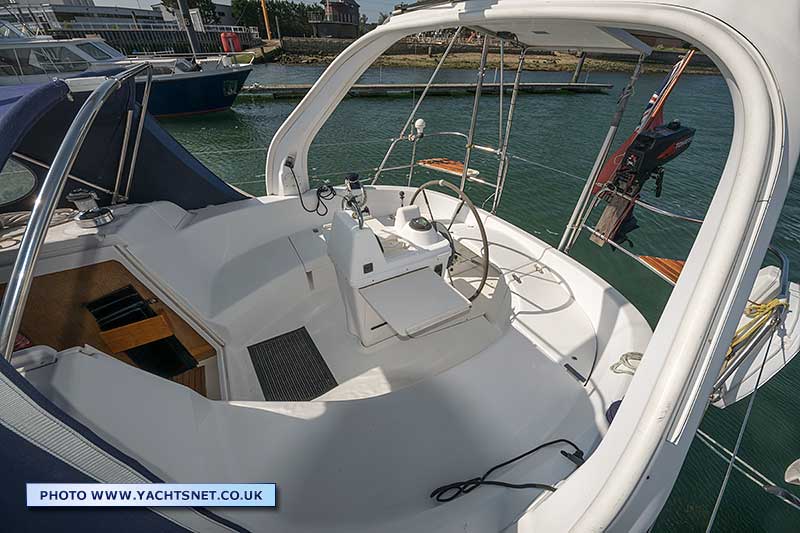

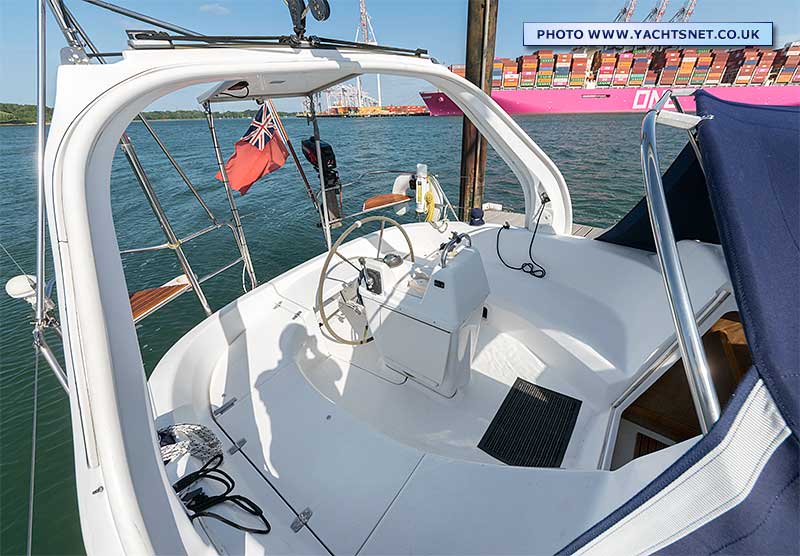

The cockpit has a large central pedestal which includes hinge-out table sections, drinks holders, and a small storage compartment as well as the wheel, compass, instruments and engine controls

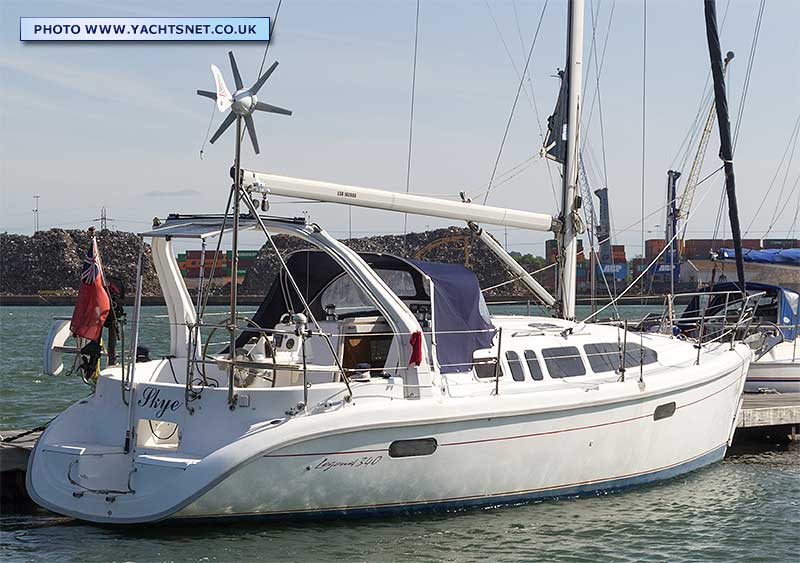

The aft end of the cockpit has a walk-through section to the stern platform, with bathing platform and hot/cold shower fitting
